CIDAN FX Plus Series | Short Folding Machines

Categories: Folding Machines, Short Folding Machines

The CIDAN FX PLUS is a high-performance short folding machine built for fast, precise sheet-metal folding. Designed for roofing, flashing and architectural fabrication across Australia and New Zealand, it combines Swedish engineering quality with advanced automation for superior productivity and accuracy.

With its upgraded rotating Combi beam system, the FX PLUS delivers quick tool changes and flexible folding options in a single machine. This reduces handling, improves workflow efficiency and increases throughput, helping fabricators cut labour time and speed up project delivery.

Its ProLink W or nuLINK CNC control platform offers intuitive graphics supported programming, automatic sheet thickness adjustment and precise folding sequences. This ensures consistent bending accuracy, eliminates costly rework and prepares every folded part for installation the first time.

Built in Sweden and supported by CIDAN Machinery Group’s long-standing heritage, the FX PLUS sets the benchmark for quality, durability and performance in short folding machines across ANZ, establishing a reliable standard in metal processing equipment.

Key Features and Capabilities

Advanced Combi Beam Folding: Rotating upper beam with straight rail and divided box tooling delivers fast tool changes and flexible folding of simple bends, deep trays and complex architectural profiles.
Reinforced Steel Frame: All welded steel construction with strengthened side plates ensures excellent rigidity, stability and repeatable precision in high-demand short folding applications.
Flexible Capacity: Handles steel material thicknesses from around 2.5–2.0mm and working lengths approximately 2600–4100mm, ideal for roofing, flashing and architectural fabrication across ANZ.
High Precision CNC Control: ProLink W or nuLINK provides graphics supported programming, automatic folding sequence design and accurate material adjustment for consistent folding accuracy.
Efficient Automated Operation: Improved working height and streamlined tool change processes reduce manual handling, increase throughput and allow operators to manage multiple production tasks with consistent reliability.

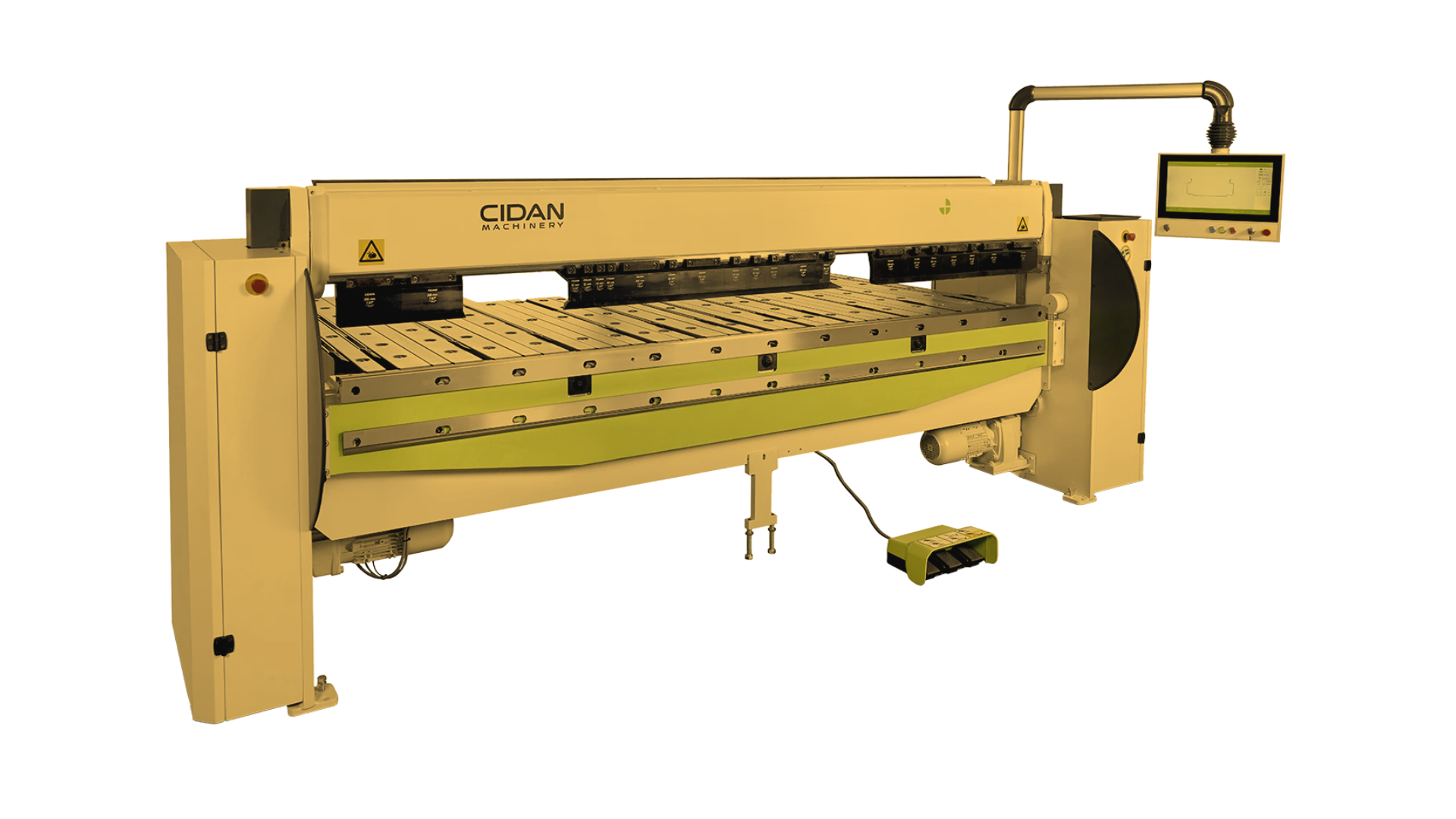

Discover the CIDAN FX PLUS, premium folding machines known for their precision, efficiency, and advanced automation; ideal for sheet metal processing industries.

CIDAN FX Plus Series | Short Folding Machines

Safety and Ease of Use

Operator Safety Features

✔️ Reliable Control Systems: ProLink W or nuLINK touchscreen control provides clear graphics supported programming and precise, repeatable folding accuracy.

✔️ Stable Folding Platform: Reinforced steel frame and strengthened side plates increase stability during operation, reducing vibration and improving safe handling.

Comprehensive Safety Features

✔️ Safety-Focused Design: Integrated guarding, emergency stop functions and protective beam construction support safe operation in busy fabrication environments.

✔️ Enhanced Visibility: Clear fold-line visibility, open beam cut-outs and intuitive interface prompts assist operators in monitoring each step with confidence.

✔️ Service and Support: Backed by Total Rollforming’s local service expertise and CIDAN Machinery’s global safety standards across ANZ.

Ergonomic and User-Focused Design

✔️ User-Friendly Interface: Intuitive control layouts and simplified navigation make daily folding operations easier for operators of all skill levels.

✔️ Flexible Application: Adjustable working height, easy tooling access and rapid tool changes support smooth transitions between different production setups.

✔️ Ergonomic Workflow: Reduced manual handling and improved material clearance enhance operator comfort and overall efficiency for safer, more productive operation.

Model	The BASE
Origin	Sweden
Automation Level	Fully Automated
Control System	Advanced Touchscreen
Max Material Thickness (mm)	1.0
Max Length (mm)	8050
Safety Features	Standard Safety (Light Curtains, Guards)
Software Integration	Industry 4.0 Integration
Coil Weight (kg)	10,000
Coil Width (mm)	1,500

Why?
Service & Support
Maintenance & Reliability
Additional Resources

Why Choose the FX PLUS Short Folder?

Engineered for Accuracy:
Swedish-built precision folding with ProLink W or nuLINK ensures clean, repeatable results.
Fast Tool Changes:
Rotating Combi beam enables quick tooling switches for faster workflow.
Versatile Capacity:
Handles 2.5–2.0mm material thicknesses and 2600–4100mm working lengths across ANZ.
Robust Build:
Reinforced steel frame and strengthened side plates deliver stable, durable performance.
Productive Operation:
Improved working height and user-friendly controls support efficient daily use.

Comprehensive Service and Support

At Total Rollforming, we are committed to providing exceptional service from the initial installation to long-term maintenance and support.

Training Programs: We offer comprehensive training to empower your operators and ensure your team maximises the machine’s potential.
Expert Installation: Our team ensures that your machine is installed and configured for optimal performance right from the start.
24/7 Customer Support: Available around the clock, our support team is ready to assist with any questions, technical issues, or troubleshooting needs.

With ongoing support and a reliable maintenance programme, Total Rollforming ensures that your machine will continue to run smoothly, delivering the results your business needs for years to come.

Maximise Uptime with Our Maintenance and Reliability Programme

Regular maintenance is crucial for extending the life of your equipment and keeping your production line running smoothly. Total Rollforming provides a comprehensive maintenance programme designed to prevent downtime and ensure consistent performance.

Preventive Maintenance: Regular inspections and check-ups help identify potential issues early, reducing the risk of costly breakdowns.
On-Site and Remote Support: Whether you need assistance on-site or remotely, our team is ready to ensure minimal disruption to your operations.
Fast Turnaround Repairs: With access to spare parts and efficient repairs, we ensure your machine gets back to full productivity quickly.

With our expert technicians and dedicated service team, we ensure that your equipment operates at peak efficiency, helping you maximise output and minimise downtime.

Explore More Resources

Looking for additional details about how our machines can enhance your production? Explore the resources below:

Product Brochure: Download the full brochure for detailed specifications and configuration options.
Video Tutorials: Watch our machines in action and see how they can improve your operations.
Case Studies: Discover how other companies have successfully integrated our machines into their production lines.

These resources provide you with all the information you need to make an informed decision about how our machines can benefit your business.

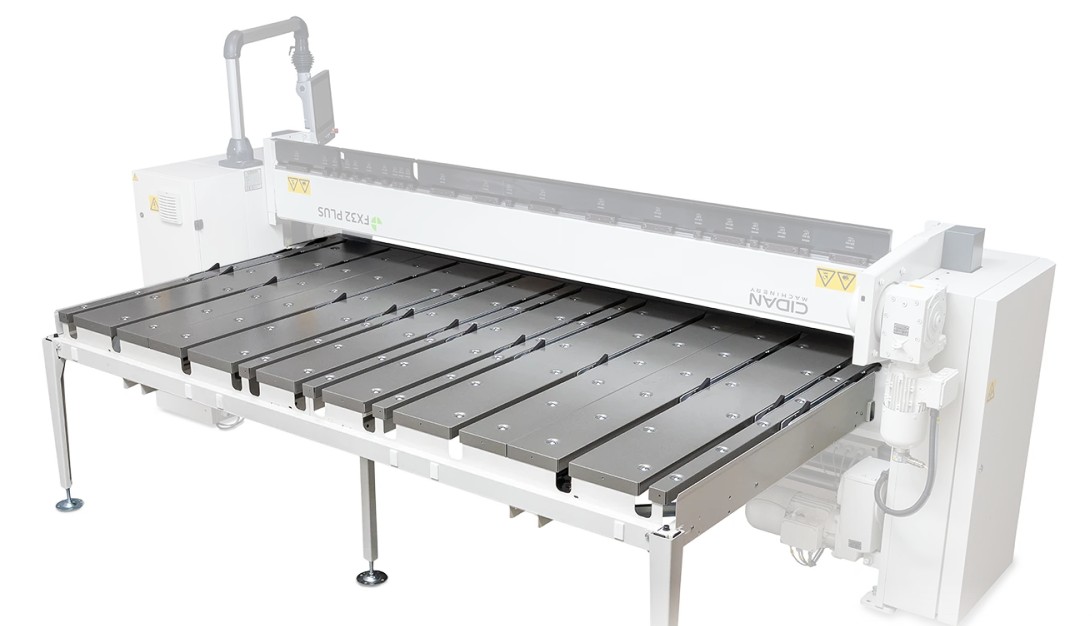

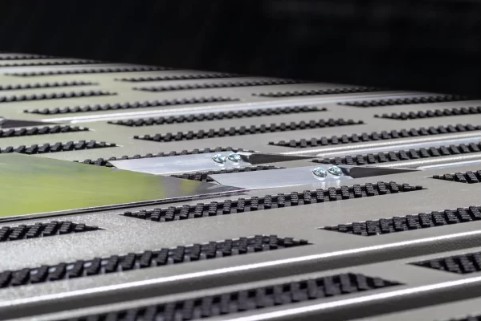

Backgauge Flexible Extensions

Flexible backgauge extensions increase table depth, allowing support for larger or longer sheet-metal components. Available in lengths up to 4200mm, they can be mounted on the left, right or centre to suit specific production requirements.

XTAP – conical bending

The CIDAN FLEXIBLE backgauge can be equipped with angled positioning using the XTAP system for conical bending. Controlled through ProLink, the gauge positions adjust automatically to enable quick, precise production of profiles such as cappings and non-parallel parts, with clean overlaps and no trimming required.

Gauge Finger Options

A range of gauge finger configurations is available to suit varying sheet sizes and folding applications. These options enhance precision and support accurate material positioning, with choices including solid front fingers and segmented designs for improved accessibility and handling control.

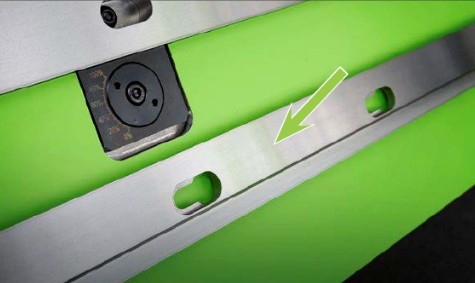

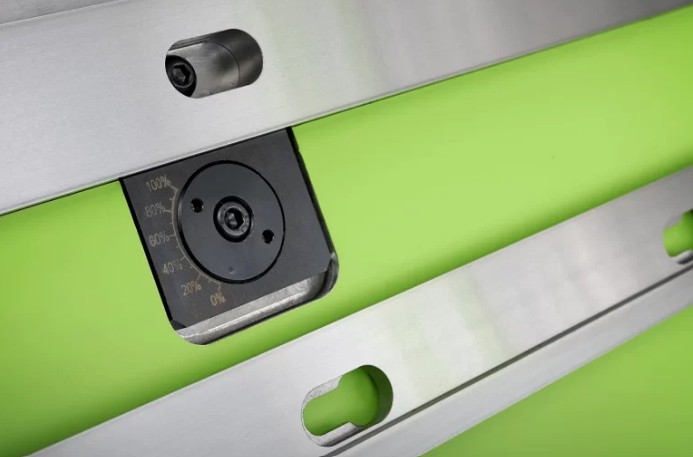

Folding Tool Options

Folding beam tools are available in several sizes, including standard 7/10mm and alternatives such as 15mm, 20mm, 25mm and combo 10/15mm options. These tools support a wide range of material thicknesses and bending applications, offering quick-change capability to reduce setup time. Tool lengths include 2600mm, 3200mm and 4100mm, with only the 7/10mm supplied as standard.

Moveable foot pedal on rail

Mounted on a rail, the foot pedal allows quick and smooth repositioning along the folding area, making it ideal for workflows with multiple folding stations. When fixed to the floor, it improves safety by keeping the operator at a safe distance from the folding beam. This option is especially recommended when the machine is equipped with Multifold.

capabilities

We help to create confidence, continuity & care.

Our focus is on reliability that lasts long after delivery — through proactive service, local expertise, and genuine long-term support.

SERVICE

24/7 Customer Support & Training

Expert installation, hands-on training and ongoing assistance ensure peak performance across all double-folding operations. Our service team is available around the clock to keep your production line running smoothly throughout Australia and New Zealand.

ASSURANCE

12 - Month Warranty

Comprehensive 12-month manufacturer warranty on parts and workmanship — backed by the engineering standards of our global manufacturing partners and supported locally through Total Rollforming's service network across Australia and New Zealand.
